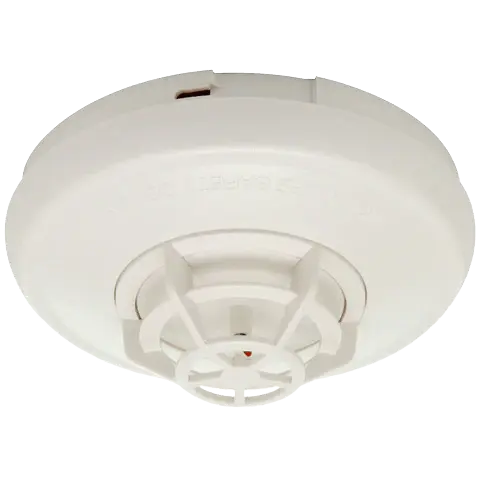

Simplex 4098-9733 TrueAlarm Analog Addressable Heat Detector
4098-9733
- Communication as well as Sensor Supervisory Power IDNet or MAPNET II communications, auto-selected one address for each base
- Communication Connections: Screw Terminals to out and in wiring between 18 and 14 AWG (0.82 mm2 to 2.08 mm2)
- The current of the remote LED alarm indicator 1 mA typically, with no effect on current alarm
- Alert LED Remote as well as Relay Connections Color-coded wire leads 18, AWG (0.82 millimeters)
- Rate-of-rise temperature sensing
- Utility temperature sensor
- Operating Temperature Range:32deg to 122deg F (0deg to 50deg C)
- Storage Temperature Range: 0deg F to 140deg F (-18deg C to 60deg C)
- Humidity Range: 10 to 95% RH
