Gates

Abacus 300

Operating Limits: Designed for gate leaves up to 3 meters (max weight 300kg) or up to 500kg for shorter 1.5-meter leaves.
Power Supply: Available in 24 VDC for intensive use or 230 VAC for standard residential use.
Thrust: The 24V model provides up to 1800 N, while the 230V model offers up to 2000 N.
Duty Cycle: 24V models are rated for intensive use, whereas 230V models typically have a 30% to 50% duty cycle.
Protection Rating: Most models carry an IP44 rating, with some variants listed as IP24D.
Speed: No-load speed is approximately 21 mm/s for 24V units and 16 mm/s for 230V units.

Abacus 500
Operating Limits:
Max leaf length of 5 meters for gates up to 220 kg.
Max leaf weight of 500 kg for shorter gates up to 2 meters.
Power & Thrust:
24V Model: Consumes 110W with a maximum thrust of 1800 N.
230V Model: Consumes 280W with a maximum thrust of 2000 N.
Speed: No-load speed is 21 mm/s for the 24V version and 16 mm/s for the 230V version.
Duty Cycle: The 24V version is rated for intensive use, while the 230V version has a 50% duty cycle.
Stroke: Features a standard stroke of 446 mm, significantly longer than the 300 series to handle wider gates.

​Fort 1000

Capacity: Suitable for gates up to 1000 kg.
Voltage Options: Available in 230 VAC (50% duty cycle) and 24 VDC (intensive use).
Control Board: Prewired, user-friendly electronic control unit with, on some models, encoder technology for safety.
Design: Durable aluminum housing, designed to operate in various weather conditions.
Functionality: Features a manual release mechanism, programmable automatic/semi-automatic operation, and deceleration phases.

Fort 1500

Maximum Gate Weight: 1,500 kg.
Power Supply: 230 VAC (50 Hz).
Power Consumption: 460 W.
Maximum Thrust: 1,400 N.
Operating Speed: 0.17 m/s.
Duty Cycle: 50% (suitable for frequent use).
Protection Rating: IP44 (protected against splashing water and solid objects over 1mm).
Operating Temperature: -20°C to +50°C.
Weight: 12.6 kg.

Fort 2500

Maximum Gate Weight: 2,500 kg.
Power Supply: 380V AC (50 Hz).
Operating Power Supply: 380V.
Power Consumption: 0.37 kW.
Maximum Absorption: 1.11 A.
Maximum Thrust: 2,000 N.
Maximum Speed: 0.17 m/s.
Duty Cycle: Intensive use.
Rack Module: M4.
Gear Ratio: 1:50.
Unit Weight: 35 kg.

Fort 500

Maximum Gate Weight: 500 kg.
Power Supply: 230V AC (50 Hz).
Power Consumption: 280 Watts.
Operating Speed: Nominal speed of 0.17 m/s to 0.28 m/s, depending on the specific model variant and slowdown settings.
Maximum Thrust: 450 N.
Protection Level: Robust aluminum housing with anti-UV treatment and IP44 protection rating for durability against environmental factors.
Operating Temperature: Tested to work in extreme conditions, including temperatures as low as -35°C thanks to "arctic grease" lubrication.

Fort 800
Capacity: Specifically engineered for gates up to 800 kg.
Speed: Capable of opening gates at approximately 0.28 m/s (roughly 10.5 meters per minute).
Technology: Features a 24V or 230V motor (depending on the specific model) with a built-in control unit for obstacle detection and programmable work times.
Build: Uses an aluminum housing and high-quality internal gears (bronze or steel) to ensure longevity in all weather conditions.
​

RAM 300

Max Leaf Length: Up to 3 meters (approx. 10 ft).
Max Leaf Weight: Up to 300 kg (approx. 660 lbs).
Power Options: 230VAC (280W) .
Performance:
Thrust: 1800 N (230V).
Speed: 16 mm/s (230V).
Protection: IP44 weather resistance.
Operating Temp: -20°C to +50°C.

RAM 500

Operating Voltage: 230V AC.
Maximum Leaf Weight: Up to 500 kg (for leaf lengths up to 2m).
Maximum Leaf Length: Up to 5 meters (for leaf weights up to 200 kg).
Max Thrust: 2000 N (230V).
Max Stroke: 524 mm.
Opening Speed:15 mm/s (230V).
Protection Rating: IP44 (weather resistant).
Operating Temperature: -20°C to +50°C

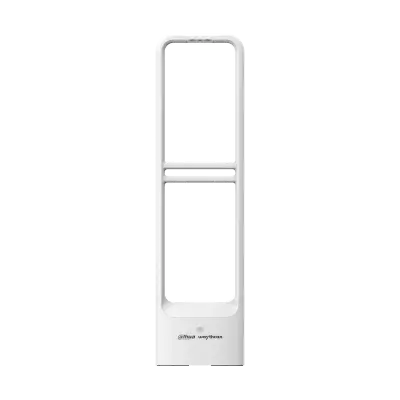

ISC-EAA2-C201-R
Superior detection distance, max detection distance can be 2.4 meters (pencil tag DHI-ISC-ETA5-T901).
Excellent anti-interference, continuous working in complex electromagnetic environment.
Build-in 1.3 inch OLED display with convenient configuration.
Auto/manual adjust phase to effectively handle different kinds of interference.
Alarm volume and alarm tone are both adjustable.
The primary and replica antenna are all integrated transceivers, three modes can be selected: RX, TX, TR mode.
The primary antenna can connect up to 2 replica antennas as 1 set system. Multi-system can work together.
Stylish and minimalist appearance, beautiful and elegant, high strength plastic shell, solid and easy to install.
Economic operating power consumption, energy-saving and environment-friendly.
Support firmware upgrade.
CCTV monitoring linkage.
Supports multi-language (Optional).
Supports DSS Pro platforms.
Support WEB interface.
Support cloud services, remote configuration.

ISC-EAA2-C208-P

Superior detection distance, max detection distance can be 2.4 meters (pencil tag DHI-ISC-ETA5-T901).
Excellent anti-interference, continuous working in complex electromagnetic environment.
Build-in 1.3 inch OLED display with convenient configuration.
Auto/manual adjust phase to effectively handle different kinds of interference.
Alarm volume and alarm tone are both adjustable.
The primary and replica antenna are all integrated transceivers, three modes can be selected: RX, TX, TR mode.
The primary antenna can connect up to 2 replica antennas as 1 set system. Multi-system can work together.
Stylish and minimalist appearance, beautiful and elegant, high strength plastic shell, solid and easy to install.
Economic operating power consumption, energy-saving and environment-friendly.
Support firmware upgrade.
CCTV monitoring linkage.
Supports multi-language (Optional).
Supports DSS Pro platforms.
Support WEB interface.
Support cloud services, remote configuration.

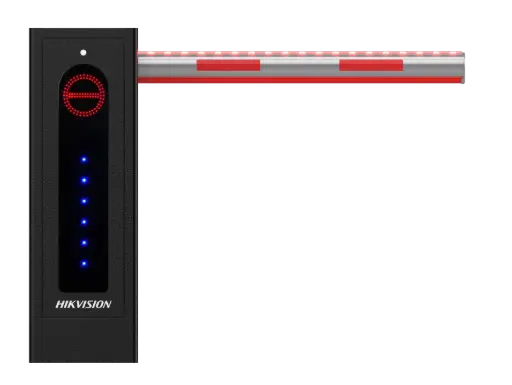

DS-TMG300-D/A/B
Supports convenient side installation with compact structure.
Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
Delayed boom pole closing. Supports 1 to 99 seconds.
Intergated with strip light and body indicator to show barrier gate status.

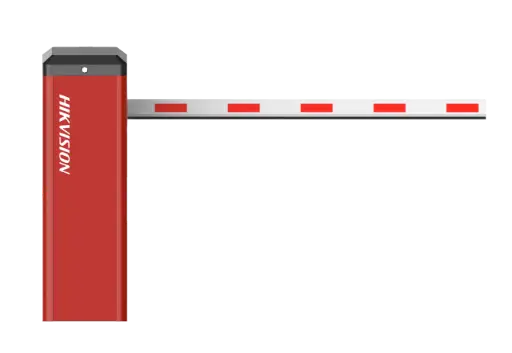

DS-TMG520-M/A/B
DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
Multiple anti-hitting modes via induction, IR, pressure wave, etc.
The boom pole direction is adjustable from left to right, or from right to left.
Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.

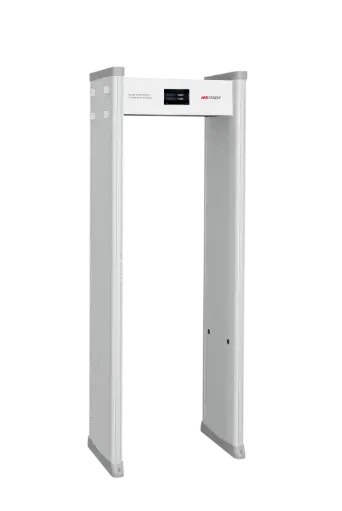

ISD-SMG1112L

Networking function: can be single-machine networking, through the web terminal for parameter configuration;
Metal detection: can detect 1 coin size of metal, effectively carry out illegal items verification;
Ultra-low detection height: Metal objects more than 3cm above the ground can be alarmed when they enter the detection area.
Boot self-diagnostic function: Perform a self-test on the system at boot time and display the test results.
7 inch LCD color LCD screen display, can display menu, number of people through, metal alarm number and other ISD-SMG1112L Walk Through Metal Detector information;
Multi-zone alarm function: Multiple metals in different positions of the human body will be alarmed at the same time when passing through the security gate, and can indicate the position of multiple metals, supporting up to 12 zones.
Modular component design: easy and fast transportation and maintenance.
With flying object alarm function: metal objects thrown from the middle of the door will also accurately alarm

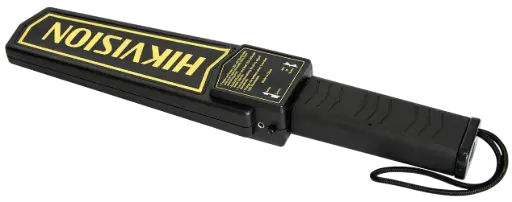

NP-SH100
Adjustable detection sensitivity for different requirements
Low battery alarm
Two alarm modes: vibrative alarm, and audible & visual alarm
LED for battery/charging indication
With rechargeable battery and charger
High detection speed with big probe area
Drop-proof (1m drop protection)
