Sound System

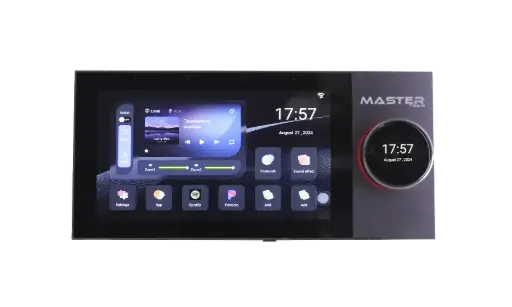

MT-B7-825ADT

Supports dual-zone up to 200Watt
7-inch touchscreen
1024×600 resolution
Android11 Operating System
Supports Tuya Mobile App
Includes WiFi ,Bluetooth, LAN
Supports up to 32GB TF card
Supports up to 32GB USB drive
Supports clock and calendar display functions
Supports audio formats such as MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG, and more
Dimensions: 30.5*20*11.5mm



​

MT-BA-225D

50Watt Wall-Mount Amplifier
Includes Bluetooth
Supports up to 32GB TF card
Supports up to 32GB USB drive
Dimensions: 86*86*12mm

MT-BA-225D

50Watt Wall-Mount Amplifier
Includes Bluetooth
Supports up to 32GB TF card
Supports up to 32GB USB drive
Dimensions: 86*86*12mm

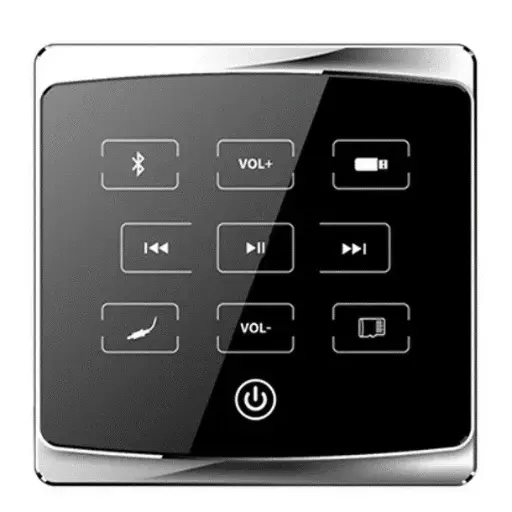

MT-BA-425D

100Watt Wall-Mount Amplifier
Includes Bluetooth
Supports up to 32GB TF card
Supports up to 32GB USB drive
Dimensions: 86*86*12mm

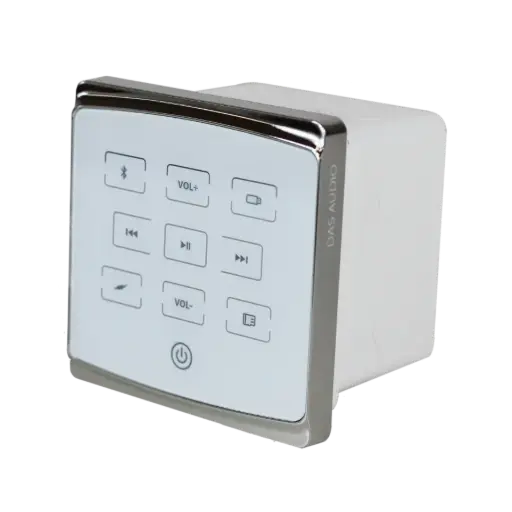

MT-BA-425D

100Watt Wall-Mount Amplifier
Includes Bluetooth
Supports up to 32GB TF card
Supports up to 32GB USB drive
Dimensions: 86*86*12mm

MT-BA-425TC

100Watt Wall-Mount Amplifier
1.7-inch touchscreen
Includes WiFi ,Bluetooth
Supports up to 32GB TF card
Supports up to 32GB USB drive
Dimensions: 86*86*12mm

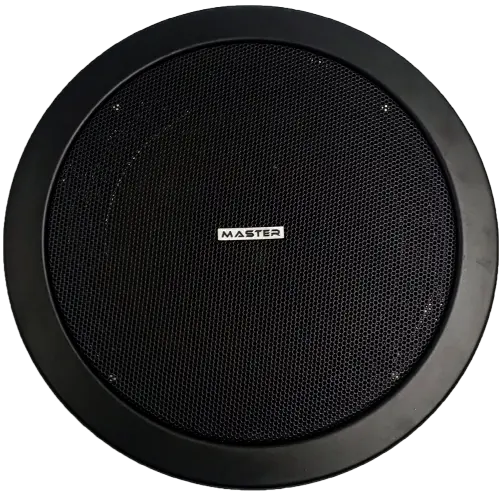

MT-606

RATED POWER: 3,6W
SENSITIVITY: 98DB
FREQUENCY: 130-16KHZ
SIZE: 185MM
HOLE CUT SIZE: 170MM

MT-606LMC

RATED POWER: 3,6W
SENSITIVITY: 99DB
FREQUENCY: 100-18KHZ
SIZE: 180MM
HOLE CUT SIZE: 170MM

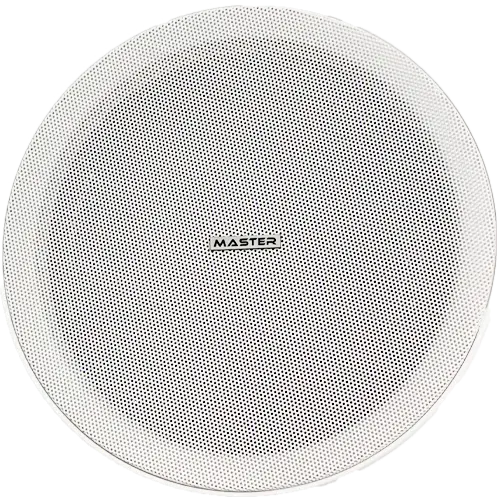

MT-606LML

RATED POWER: 6W
SENSITIVITY: 98DB
FREQUENCY: 70-12KHZ
SIZE: 185MM
HOLE CUT SIZE: 170MM

MT-606LML

RATED POWER: 3,6W
SENSITIVITY: 98DB
FREQUENCY: 130-16KHZ
SIZE: 185MM
HOLE CUT SIZE: 170MM

A-2240-H
Output & Power: 240W, 220–240 V AC or 24–30 V DC.
Inputs: Three microphone inputs (MIC 1 with phantom power) and two AUX inputs.
Outputs: Balanced high (100V/70V) and low (4Ω) impedance, plus REC output.
Dimensions/Weight: 420 x 100.9 x 360.3 mm, 13.2 kg.

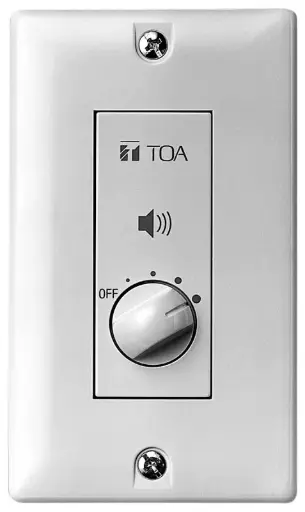

AT-603AP

Input Range: 0.5 W to 60 W maximum capacity.
Attenuation Levels: 5-step control (0 dB, -6 dB, -12 dB, -18 dB, and OFF).
Dimensions: 70 (W) × 120 (H) × 52.4 (D) mm with the plate attached.
Weight: Approximately 210 g (0.46 lb) for the unit only.
Operating Temperature: Ranges from -10 °C to +50 °C.
Finish: Knob, panel, and plate are made of white ABS resin (RAL 1013 equivalent), with a black ABS resin case.

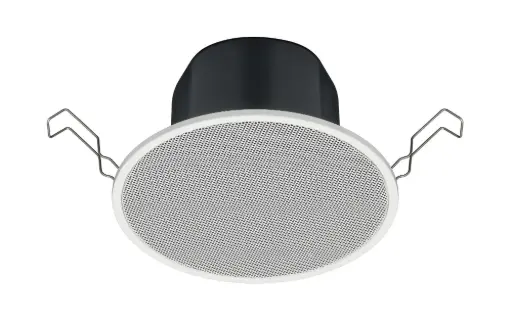

PC-1865BS
Rated Input: 6 W (for 100 V lines) and 3 W (for 70 V lines).
Sensitivity: 95 dB (1 W, 1 m).
Frequency Response: 200 Hz – 20 kHz.
Speaker Component: 12 cm (approx. 5 inches) cone-type transducer.
Tappings: Adjustable power levels via transformer:
100 V line: 6 W, 3 W, 1.5 W, and 0.8 W.
70 V line: 3 W, 1.5 W, 0.8 W, and 0.4 W.
Environmental Protection: IP 21C rated for dust and water protection.

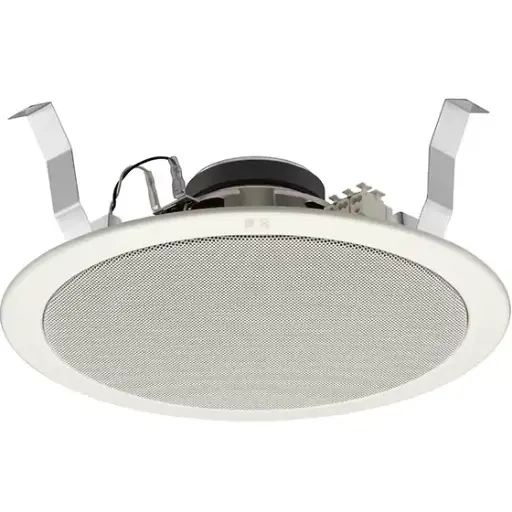

PC-648R

Rated Input: 6 W for 100 V lines and 3 W for 70 V lines.
Frequency Response: 100 Hz to 18 kHz.
Sensitivity: 90 dB (measured at 1 W, 1 m).
Speaker Component: 12 cm (5") cone-type driver with a ferrite magnet.
Finish: Baffle made of white polypropylene resin with a surface-treated steel plate net grille (RAL 9016 or 9010 equivalent).
Dimensions: φ168 × 77 (D) mm (approx. 6.61" x 3.03").
Weight: 470 g (approx. 1.04 lb).

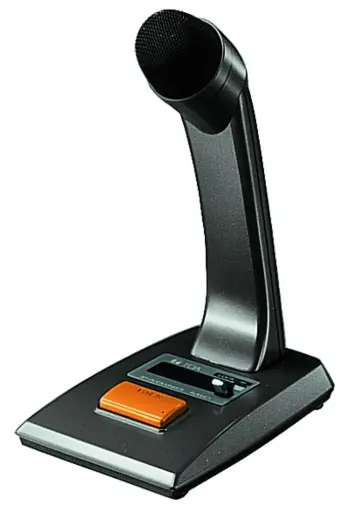

PM-660

Microphone Type: Moving coil (dynamic) with a unidirectional (cardioid) polar pattern to reduce background noise.
Frequency Response: 100 Hz to 10 kHz.
Rated Impedance: 600 Ω, unbalanced.
Sensitivity: -58 dB (at 1 kHz, 0 dB = 1 V/Pa).
Cable: 2.5-meter (8.2 ft) single-core shielded cable terminated with a 6.3 mm (1/4") mono phone plug.
Dimensions: 100 (W) × 212 (H) × 150 (D) mm.
Weight: 400 g (approx. 0.88 lb) excluding the cable.

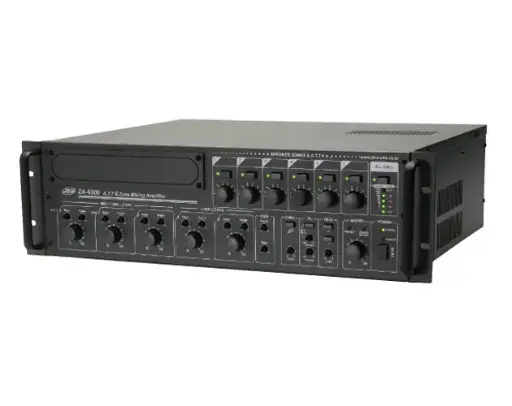

ZA-6360

Power Output: Rated at 360W with a maximum output of 410W.
Zone Management: Supports 6 independent zones with individual volume control for each.
Input Configuration: Includes 3 microphone inputs (with selective phantom power) and 2 RCA stereo inputs for external audio sources.
Output Options: Features a 100V high-impedance line for long-distance speaker runs or a 4Ω direct low-impedance output.
Protection Systems: Equipped with over-current, over-heating, and load short-circuit protection, as well as an automatic variable-speed cooling fan.
Physical Build: Dimensions are 430(W) x 133(H) x 352(D) mm, and it weighs approximately 18–19 kg.
